Product Range
Our Multi Split: Super Match system gives you the flexibility to mix and match a range of different indoor air conditioning units throughout your home in one system. Haier's multi split Super Match outdoor units allows pairing with a range of different types of indoor units – including high wall, ducted and cassette models – depending on your needs.

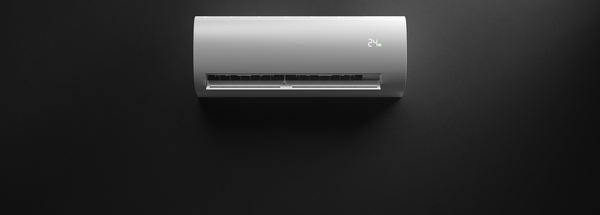

Wall Mounted: Pinnacle (Heating and Cooling)
Featuring UV Protect, Pinnacle is a wall mounted indoor unit is part of our Super Match range and can be paired with our range of multi head outdoor units.
Learn more

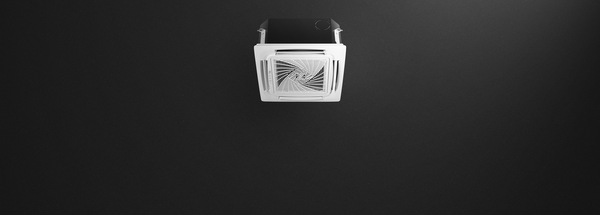

4 Way Compact Cassette
This compact, ceiling-mounted cassette unit is part of our Super Match range and can be paired with a universal multi-head outdoor unit.
Learn more

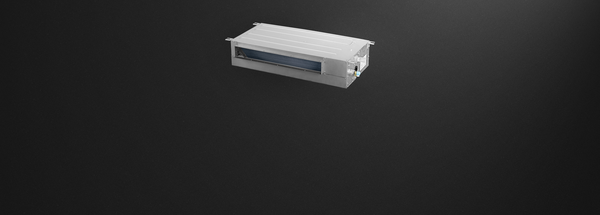

Slim Ducted (R32)
Discreet appearance, this slim ducted indoor unit is part of our Super Match range and can be paired with a universal multi-head outdoor unit. Featuring UV Protect.
Learn moreFeatures

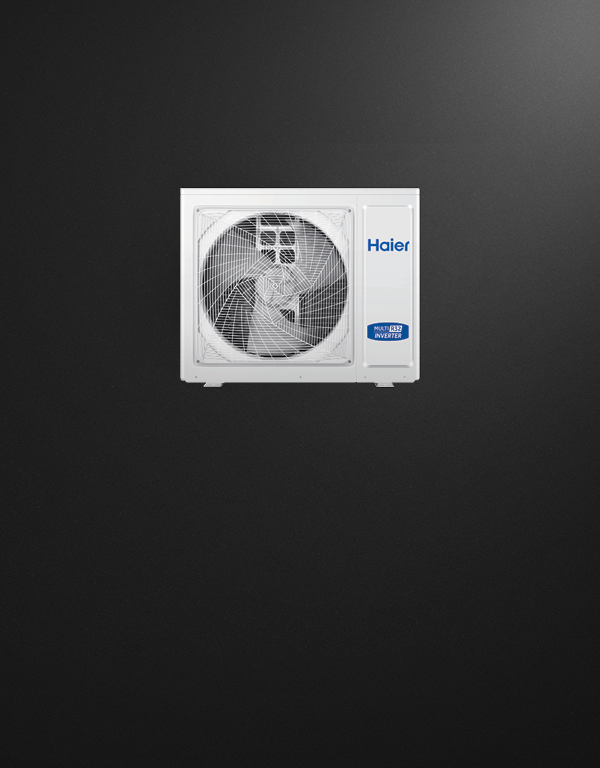

Super Match Multi Split System
The Super Match multi split outdoor unit can be paired with various indoor units for a complete multi-room air conditioning / heat pump solution.
Simple Wiring
Wiring solution: parallel connection and easy wiring.
Faster Servicing
An easily accessible maintenance panel and service screen enable fast diagnostics.
Wider Range of Operation
The outdoor unit operates in a wide range of external temperatures. Cooling: from -10°C to 46°C Heating: from -15°C to 24°C
Technologies

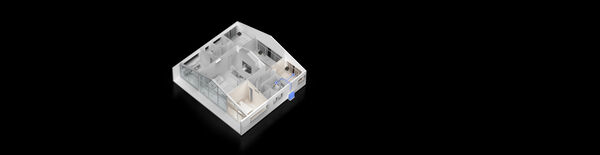

Super Match multi split system
The Super Match outdoor unit can be paired with various indoor units for a complete multi-room air conditioning solution.
DC inverter technology
With 3D Direct Current (DC) inverter technology, Super Match multi split air conditioning units are designed to be more energy efficient that a standard AC motor, while delivering rapid heating and cooling as needed.
Anti-corrosion coating
The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.
R32 refrigerant
This Super Match outdoor unit uses a next-generation R32 refrigerant, which carries heat efficiently and has 33% the global warming potential of R410A.
Specifications

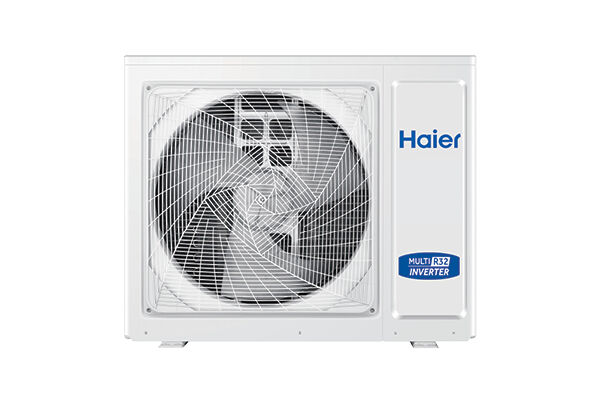

Multi RC Outdoor R32, 5.5kW
3U55S2PR1FA
Capacity
Cooling capacity (kW): 5.5kW
Heating capacity (kW): 5.8kW
Consumption
COP: 4.20
EER: 3.99
HSPF-RES (Hot/Average/Cold): 4.608/4.173/3.601
HSPFCOM (Hot/Average/Cold): 3.688/3.326/2.993
Star-Cool (Hot/Average/Cold): 3.5/2.5/2.5
Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0
TCSPF-COM (Hot/Average/Cold): 4.001/4.014/4.248
TCSPF-RES (Hot/Average/Cold): 5.182/4.404/4.395
Product dimensions
Depth: 340mm
Height: 700mm
Net weight: 50kg
Width: 890mm
Warranty
Parts and labour: 5 years
Capacity
Cooling capacity (kW): 5.5kW
Heating capacity (kW): 5.8kW
Consumption
COP: 4.20
EER: 3.99
HSPF-RES (Hot/Average/Cold): 4.608/4.173/3.601
HSPFCOM (Hot/Average/Cold): 3.688/3.326/2.993
Star-Cool (Hot/Average/Cold): 3.5/2.5/2.5
Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0
TCSPF-COM (Hot/Average/Cold): 4.001/4.014/4.248
TCSPF-RES (Hot/Average/Cold): 5.182/4.404/4.395
Features
Blue fin coils:
Compressor type: Twin rotary
Inverter controlled compressor:
MEPS approved:
Refrigerant factory charge: 1.4kg
Installation
Maximum number indoor units: 3
Pipe length maximum: 50m
Pipe size gas: 3x 9.52mm
Pipe size liquid: 3x 6.35mm
Performance
Airflow: 3000m3/h
DC inverter:
Outdoor sound power SWL: 64dBA
Outdoor sound pressure SPL: 51dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 6.1A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 340mm
Height: 700mm
Net weight: 50kg
Width: 890mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Super Match Multi RC Outdoor R32, InstallationManuals-HaierHVACAU
Multi RC Outdoor R32, 7.1kW
4U71S2PR1FA
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Consumption
COP: 4.10
EER: 3.64
HSPF-RES (Hot/Average/Cold): 4.343/4.072/3.698
HSPFCOM (Hot/Average/Cold): 4.343/4.072/3.698
Star-Cool (Hot/Average/Cold): 3.0/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.5/2.5/2.0
TCSPF-COM (Hot/Average/Cold): 4.581/3.915/3.895
TCSPF-RES (Hot/Average/Cold): 4.581/3.915/3.895
Product dimensions
Depth: 340mm
Height: 700mm
Net weight: 61kg
Width: 890mm
Warranty
Parts and labour: 5 years
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Consumption
COP: 4.10
EER: 3.64
HSPF-RES (Hot/Average/Cold): 4.343/4.072/3.698
HSPFCOM (Hot/Average/Cold): 4.343/4.072/3.698
Star-Cool (Hot/Average/Cold): 3.0/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.5/2.5/2.0
TCSPF-COM (Hot/Average/Cold): 4.581/3.915/3.895
TCSPF-RES (Hot/Average/Cold): 4.581/3.915/3.895
Features
Blue fin coils:
Compressor type: Twin rotary
Inverter controlled compressor:
MEPS approved:
Refrigerant factory charge: 2.2kg
Installation
Maximum number indoor units: 3
Pipe length maximum: 70m
Pipe size gas: 3x 9.52 + 1x 12.7mm
Pipe size liquid: 3x 6.35mm
Performance
Airflow: 4000m3/h
DC inverter:
Outdoor sound power SWL: 68dBA
Outdoor sound pressure SPL: 55dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to 24°C
Power requirements
AMP draw: 8.7A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 340mm
Height: 700mm
Net weight: 61kg
Width: 890mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Super Match Multi RC Outdoor R32, InstallationManuals-HaierHVACAU
Multi RC Outdoor R32, 8kW
4U80S2PR1FA
Capacity
Cooling capacity (kW): 8kW
Heating capacity (kW): 8.8kW
Consumption
COP: 3.91
EER: 3.40
HSPF-RES (Hot/Average/Cold): 4.269/3.304/2.764
HSPFCOM (Hot/Average/Cold): 4.26/3.725/3.071
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.5/1.5/1.0
TCSPF-COM (Hot/Average/Cold): 4.729/4.675/4.923
TCSPF-RES (Hot/Average/Cold): 4.366/3.798/3.811
Product dimensions
Depth: 340mm
Height: 700mm
Net weight: 61kg
Width: 890mm
Warranty
Parts and labour: 5 years
Capacity
Cooling capacity (kW): 8kW
Heating capacity (kW): 8.8kW
Consumption
COP: 3.91
EER: 3.40
HSPF-RES (Hot/Average/Cold): 4.269/3.304/2.764
HSPFCOM (Hot/Average/Cold): 4.26/3.725/3.071
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.5/1.5/1.0
TCSPF-COM (Hot/Average/Cold): 4.729/4.675/4.923
TCSPF-RES (Hot/Average/Cold): 4.366/3.798/3.811
Features
Blue fin coils:
Compressor type: Twin rotary
Inverter controlled compressor:
MEPS approved:
Refrigerant factory charge: 2.2kg
Installation
Maximum number indoor units: 4
Pipe length maximum: 70m
Pipe size gas: 3x 9.52 + 1x 12.7mm
Pipe size liquid: 4x 6.35mm
Performance
Airflow: 4000m3/h
DC inverter:
Outdoor sound power SWL: 68dBA
Outdoor sound pressure SPL: 55dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 10.5A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 340mm
Height: 700mm
Net weight: 61kg
Width: 890mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Super Match Multi RC Outdoor R32, InstallationManuals-HaierHVACAU
Multi RC Outdoor R32, 10kW
5U100S2PS1FA
Capacity
Cooling capacity (kW): 10kW
Heating capacity (kW): 10kW
Consumption
COP: 4.20
EER: 3.45
HSPF-RES (Hot/Average/Cold): 4.608/3.661/3.080
HSPFCOM (Hot/Average/Cold): 4.071/3.383/5.103
Star-Cool (Hot/Average/Cold): 3.0/2.5/2.5
Star-Heat (Hot/Average/Cold): 3.0/2.0/1.5
TCSPF-COM (Hot/Average/Cold): 5.103/5.099/5.407
TCSPF-RES (Hot/Average/Cold): 4.689/4.098/4.155
Product dimensions
Depth: 372mm
Height: 760mm
Net weight: 66kg
Width: 920mm
Warranty
Parts and labour: 5 years
Capacity
Cooling capacity (kW): 10kW
Heating capacity (kW): 10kW
Consumption
COP: 4.20
EER: 3.45
HSPF-RES (Hot/Average/Cold): 4.608/3.661/3.080
HSPFCOM (Hot/Average/Cold): 4.071/3.383/5.103
Star-Cool (Hot/Average/Cold): 3.0/2.5/2.5
Star-Heat (Hot/Average/Cold): 3.0/2.0/1.5
TCSPF-COM (Hot/Average/Cold): 5.103/5.099/5.407
TCSPF-RES (Hot/Average/Cold): 4.689/4.098/4.155
Features
Blue fin coils:
Compressor type: Twin rotary
Inverter controlled compressor:
MEPS approved:
Refrigerant factory charge: 2.4kg
Installation
Maximum number indoor units: 5
Pipe length maximum: 80m
Pipe size gas: 3x 9.52 + 2x 12.7mm
Pipe size liquid: 5x 6.35mm
Performance
Airflow: 4200m3/h
DC inverter:
Outdoor sound power SWL: 70dBA
Outdoor sound pressure SPL: 55dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 12.9A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 372mm
Height: 760mm
Net weight: 66kg
Width: 920mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Super Match Multi RC Outdoor R32, InstallationManuals-HaierHVACAU

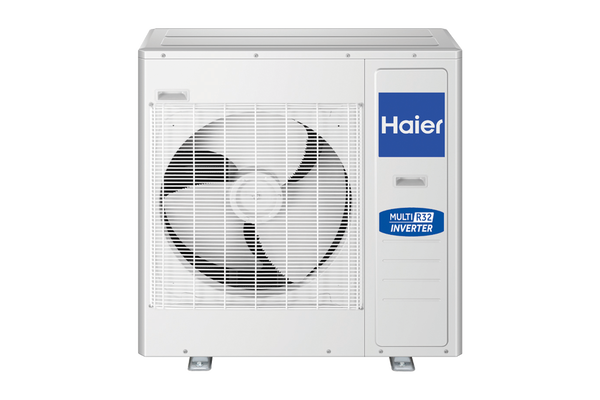

Multi RC Outdoor R32, 12.5kW
5U125S2PN1FA
Capacity
Cooling capacity (kW): 12kW
Heating capacity (kW): 12kW
Consumption
COP: 4.10
EER: 3.40
HSPF-RES (Hot/Average/Cold): 4.603/4.024/3.405
HSPFCOM (Hot/Average/Cold): 4.599/4.071/3.383
Star-Cool (Hot/Average/Cold): 3.0/2.5/2.5
Star-Heat (Hot/Average/Cold): 3.0/2.5/1.5
TCSPF-COM (Hot/Average/Cold): 5.103/5.099/5.407
TCSPF-RES (Hot/Average/Cold): 4.666/4.084/4.150
Product dimensions
Depth: 370mm
Height: 965mm
Net weight: 79kg
Width: 950mm
Warranty
Parts and labour: 5 years
Capacity
Cooling capacity (kW): 12kW
Heating capacity (kW): 12kW
Consumption
COP: 4.10
EER: 3.40
HSPF-RES (Hot/Average/Cold): 4.603/4.024/3.405
HSPFCOM (Hot/Average/Cold): 4.599/4.071/3.383
Star-Cool (Hot/Average/Cold): 3.0/2.5/2.5
Star-Heat (Hot/Average/Cold): 3.0/2.5/1.5
TCSPF-COM (Hot/Average/Cold): 5.103/5.099/5.407
TCSPF-RES (Hot/Average/Cold): 4.666/4.084/4.150
Features
Blue fin coils:
Compressor type: Twin rotary
Inverter controlled compressor:
MEPS approved:
Refrigerant factory charge: 2.5kg
Installation
Maximum number indoor units: 5
Pipe length maximum: 100m
Pipe size gas: 3x 9.52 + 2x 12.7mm
Pipe size liquid: 5x 6.35mm
Performance
Airflow: 4200m3/h
DC inverter:
Outdoor sound power SWL: 73dBA
Outdoor sound pressure SPL: 58dBA
R32 Refrigerant:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 15.5A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 370mm
Height: 965mm
Net weight: 79kg
Width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Super Match Multi RC Outdoor R32, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Super Match Multi RC Outdoor R32, InstallationManuals-HaierHVACAU
