Product Set

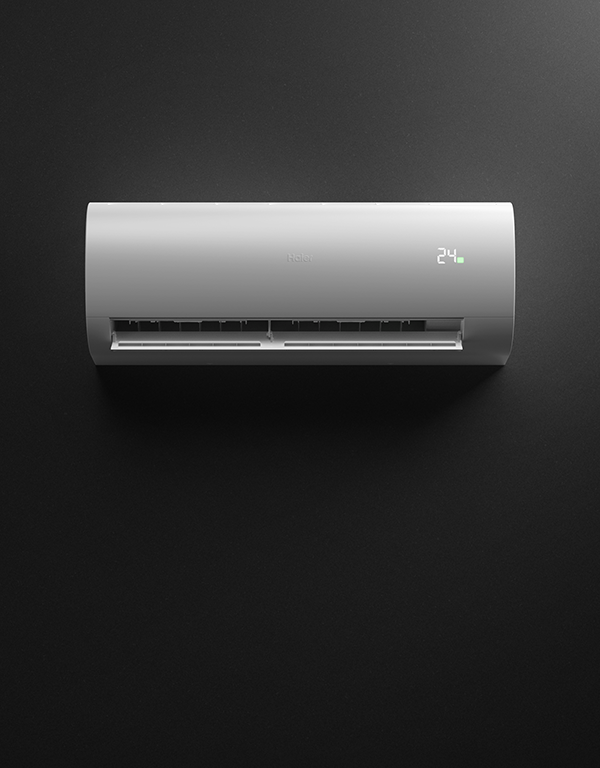

Indoor Unit
Controller
Features
Intelligent Air
Intelligent Air directs cool air upwards and warm air downwards, for maximum efficiency whether you’re heating or cooling.
Turbo Cooling
The Turbo program boosts the motor to work at a higher frequency, so you can enjoy a cool or warm room within a much shorter time.
Far-reaching Air Flow
With innovative fan and motor technology, air from your Tempo reaches long distances – as much as 20 metres in the 7kW model.
Whisper Quiet
Enjoy consistent temperature as well as peace and quiet. Our wall mounted units are very quiet and can operate from as low as 21 decibels.
Technologies
UV Protect
UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne pathogens, delivering clean air to your room.*
*Independent testing has found 91.47% elimination of the H3N2 virus in a 30m3 closed room and 82.78% of Staphylococcus Aureus bacteria in a 10m3 closed room, for two hours on Health mode at the highest fan speed
Coanda Plus Airflow
Coanda Plus Airflow technology sends warm or cool air further, as far as 20 metres in the 7kW Pinnacle air conditioner model. From ceiling to floor and to every corner of the room, air circulates evenly.
Specifications
Pinnacle Hi Wall, 2kW
AS20PBDHRA
Capacity
Cooling capacity (kW): 2kW
Heating capacity (kW): 2.3kW
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE (remote)
Capacity
Cooling capacity (kW): 2kW
Heating capacity (kW): 2.3kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Dry mode:
Infrared remote control:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Self diagnostics:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS26PBDHRA
Indoor unit weight: 8.7kg
Pipe size gas: Pipe size 9.52mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 155/133/97 L/S
Indoor sound pressure SPL: 40 / 36 / 32 / 21dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
Pinnacle Hi Wall, 2.5kW
AS26PBDHRA
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3kW
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE (remote)
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Self diagnostics:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS26PBDHRA
Indoor unit weight: 8.7kg
Pipe size gas: Pipe size 9.52mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 155/133/97 L/S
Indoor sound pressure SPL: 40 / 36 / 32 / 21dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
Pinnacle Hi Wall, 3.5kW
AS35PBDHRA
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE (remote)
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Self diagnostics:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS35PBDHRA
Indoor unit weight: 8.7kg
Pipe size gas: Pipe size 9.52mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 180/152/125 L/S
Indoor sound pressure SPL: 40 / 36 / 32 / 22dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
Pinnacle Hi Wall, 5kW
AS53PDDHRA
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.5kW
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 320mm
Indoor unit width: 970mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE (remote)
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.5kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Self diagnostics:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS53PDDHRA
Indoor unit weight: 11.6kg
Pipe size gas: Pipe size 12.7mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 260/228/195 L/S
Indoor sound pressure SPL: 47 / 43 / 37 / 33dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 320mm
Indoor unit width: 970mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
Pinnacle Hi Wall, 7kW
AS71PDDHRA
Capacity
Cooling capacity (kW): 7kW
Heating capacity (kW): 7.6kW
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 320mm
Indoor unit width: 970mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE (remote)
Capacity
Cooling capacity (kW): 7kW
Heating capacity (kW): 7.6kW
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Concealed LED display:
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Self diagnostics:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS71PDDHRA
Indoor unit weight: 11.6kg
Pipe size gas: Pipe size 12.7mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 305/260/220 L/S
Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 220mm
Indoor unit height: 320mm
Indoor unit width: 970mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
Wall Mounted: Pinnacle (Heating and Cooling), GeneralFiles-HaierHVACAU
