Features
FRESH AIR INLET
Fresh air knockout is incorporated in the chassis allowing introduction of fresh air at a rate of up to 20% of airflow without compromising cooling capacity.
CONTROL FROM ANYWHERE
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
QUIET OPERATION
A helix fan blade and diffuser are designed for quiet operation.
FOUR-WAY AIRFLOW
The louvres are designed to direct airflow far and wide for even temperature distribution.
Technologies
Super Match multi split system
The Super Match outdoor unit can be paired with various indoor units for a complete multi-room air conditioning solution.
DC inverter technology
With 3D Direct Current (DC) inverter technology, Super Match multi split air conditioning units are designed to be more energy efficient that a standard AC motor, while delivering rapid heating and cooling as needed.
Anti-corrosion coating
The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.
R32 refrigerant
This Super Match outdoor unit uses a next-generation R32 refrigerant, which carries heat efficiently and has 33% the global warming potential of R410A.
Specifications

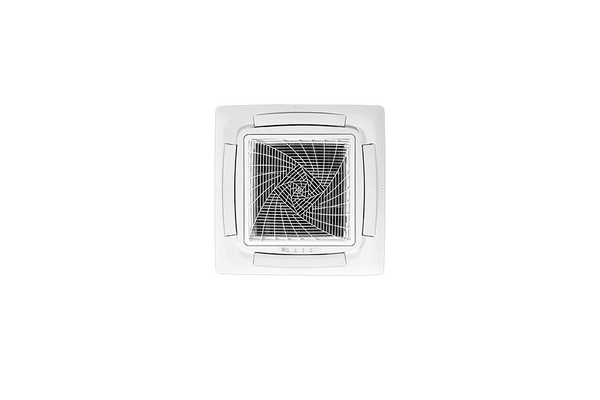

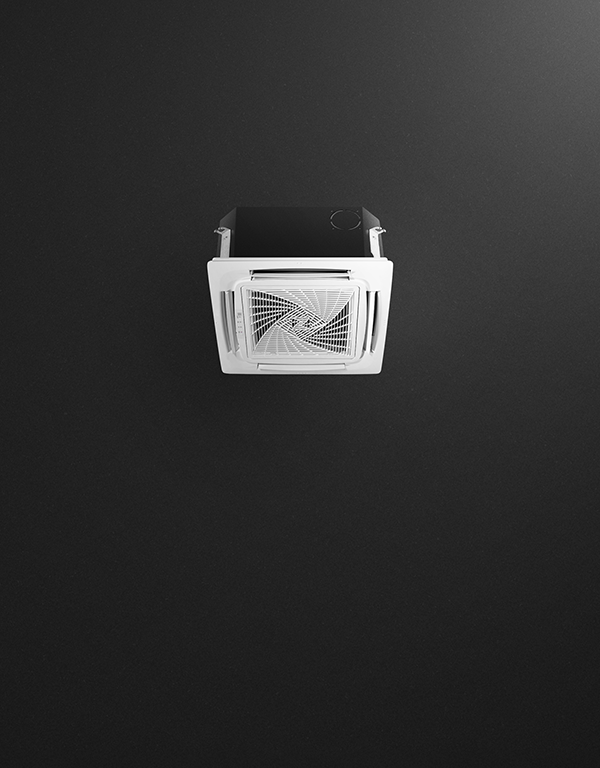

Compact 4 Way Cassette, 2.5kW
AB25S2PC1FA
Capacity
Cooling capacity (kW): 2.6kW
Heating capacity (kW): 3.2kW
Product dimensions
Depth: 260mm
Height: 570mm
Net weight: 17kg
Width: 570mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-HQS01 (remote)
Capacity
Cooling capacity (kW): 2.6kW
Heating capacity (kW): 3.2kW
Features
24 Hour timer:
Blue fin coils:
Fresh air connection:
Sleep mode:
Standard panel: PB-620KB
Wi-Fi controller compatible:
Installation
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 510m3/h
Indoor sound pressure SPL: 38 / 25 / 23dBA
R32 Refrigerant:
Sound power: 50dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 260mm
Height: 570mm
Net weight: 17kg
Width: 570mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
Installation & User Guide
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
Compact 4 Way Cassette, 3.5kW
AB35S2PC1FA
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 4kW
Product dimensions
Depth: 260mm
Height: 570mm
Net weight: 18.5kg
Width: 570mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-HQS01 (remote)
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 4kW
Features
24 Hour timer:
Blue fin coils:
Fresh air connection:
Sleep mode:
Standard panel: PB-620KB
Wi-Fi controller compatible:
Installation
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 620m3/h
Indoor sound pressure SPL: 36 / 33 / 30 / 27dBA
R32 Refrigerant:
Sound power: 52dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 260mm
Height: 570mm
Net weight: 18.5kg
Width: 570mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
Installation & User Guide
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
Compact 4 Way Cassette, 5kW
AB50S2PC1FA
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.5kW
Product dimensions
Depth: 260mm
Height: 570mm
Net weight: 19kg
Width: 570mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-HQS01 (remote)
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.5kW
Features
24 Hour timer:
Blue fin coils:
Fresh air connection:
Sleep mode:
Standard panel: PB-620KB
Wi-Fi controller compatible:
Installation
Pipe size gas: 12.7mm
Pipe size liquid: 6.35mm
Performance
Airflow: 700m3/h
Indoor sound pressure SPL: 42 / 37 / 35 / 32dBA
R32 Refrigerant:
Sound power: 55dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 260mm
Height: 570mm
Net weight: 19kg
Width: 570mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
Installation & User Guide
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
Product Brochure Super Match Multi-Split System
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
4 Way Compact Cassette, GeneralFiles-HaierHVACAU
Round Way Cassette, 7.1kW
AB71S2PC1FA
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Product dimensions
Depth: 204mm
Height: 840mm
Net weight: 27kg
Width: 840mm
Warranty
Parts and labour: 5 years
Accessories (included)
Standard controller: YR-HQS01 (remote)
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 8kW
Features
24 Hour timer:
Blue fin coils:
Fresh air connection:
Sleep mode:
Standard panel: PB-950KB
Wi-Fi controller compatible:
Installation
Pipe size gas: 15.88mm
Pipe size liquid: 9.52mm
Performance
Airflow: 1260m3/h
Indoor sound pressure SPL: 42 / 40 / 38 / 35dBA
R32 Refrigerant:
Sound power: 55dBA
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Depth: 204mm
Height: 840mm
Net weight: 27kg
Width: 840mm
Warranty
Parts and labour: 5 years
