Specifications

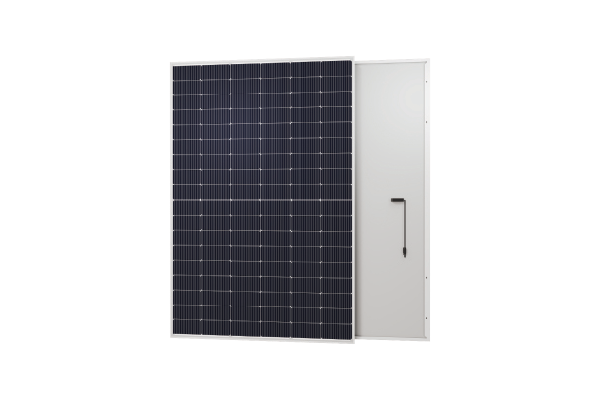

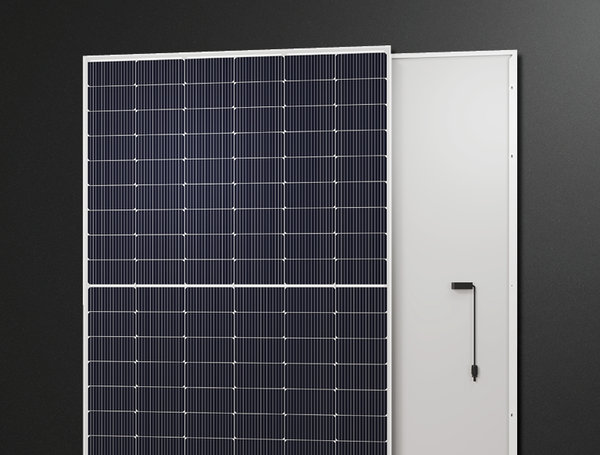

Nahui Solar Panel, TOPCon, Single Glass Module, 410W
NHO108-410MN
Capacity
Total capacity: 410 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.17A
Rated output power: 410 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Capacity
Total capacity: 410 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.17A
Rated output power: 410 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Warranty
Power warranty: 25 years
Product warranty: 12 years
Download resources
General
-
Product Brochure
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
-
Data Sheet
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
TOPCon, Single Glass Module, 410-440W, InstallationManuals-HaierHVACAU
Nahui Solar Panel, TOPCon, Single Glass Module, 420W
NHO108-420MN
Capacity
Total capacity: 420 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.33A
Rated output power: 420 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Capacity
Total capacity: 420 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.33A
Rated output power: 420 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Warranty
Power warranty: 25 years
Product warranty: 12 years
Download resources
General
-
Product Brochure
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
-
Data Sheet
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
TOPCon, Single Glass Module, 410-440W, InstallationManuals-HaierHVACAU
Nahui Solar Panel, TOPCon, Single Glass Module, 430W
NHO108-430MN
Capacity
Total capacity: 430 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.49A
Rated output power: 430 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Capacity
Total capacity: 430 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.49A
Rated output power: 430 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Warranty
Power warranty: 25 years
Product warranty: 12 years
Download resources
General
-
Product Brochure
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
-
Data Sheet
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
TOPCon, Single Glass Module, 410-440W, InstallationManuals-HaierHVACAU
Nahui Solar Panel, TOPCon, Single Glass Module, 440W
NHO108-440MN
Capacity
Total capacity: 440 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.65A
Rated output power: 440 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Capacity
Total capacity: 440 W
Features
Finish: Silver frame, white backsheet
Frame: Anodized aluminium alloy
Technology: Topcon
Power requirements
Max. input current: 13.65A
Rated output power: 440 W
Product dimensions
Depth: 30mm
Height: 1722mm
Product weight: 21.5kg
Width: 1134mm
Warranty
Power warranty: 25 years
Product warranty: 12 years
Download resources
General
-
Product Brochure
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
-
Data Sheet
TOPCon, Single Glass Module, 410-440W, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
TOPCon, Single Glass Module, 410-440W, InstallationManuals-HaierHVACAU
