Specifications

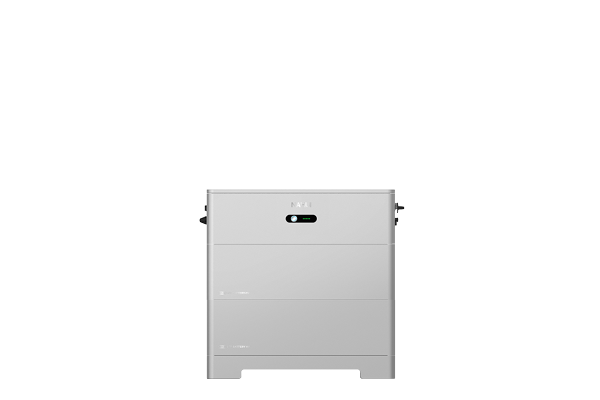

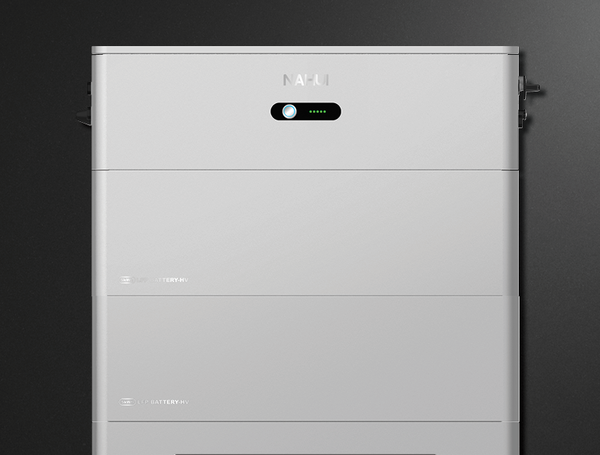

Nahui Battery, High Voltage ESS, 10kWh
NHS-1Y10K
Capacity
Total capacity: 10 KWH
Features
Cell type: LiFePO4 Pouch Cell , High Voltage ESS
Discharging temperature: -20°C to +50°C
Display: App
Finish: Silver
Protection rating: IP65
Power requirements
Max. discharge current: 40A
Max. input current: 25A
Nominal voltage: 204.8V
Operating voltage range: 182.4-230.4V
Rated output power: 10.24 KWH
Usable energy (90% DOD): 9.728kWh
Product dimensions
Depth: 330mm
Height: 628mm
Product weight: 117kg
Single battery module weight: 48kg
Width: 636mm
Capacity
Total capacity: 10 KWH
Features
Cell type: LiFePO4 Pouch Cell , High Voltage ESS
Discharging temperature: -20°C to +50°C
Display: App
Finish: Silver
Protection rating: IP65
Power requirements
Max. discharge current: 40A
Max. input current: 25A
Nominal voltage: 204.8V
Operating voltage range: 182.4-230.4V
Rated output power: 10.24 KWH
Usable energy (90% DOD): 9.728kWh
Product dimensions
Depth: 330mm
Height: 628mm
Product weight: 117kg
Single battery module weight: 48kg
Width: 636mm
Warranty
Product warranty: 10 years
Download resources
General
-
Product Brochure
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Data Sheet
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Service & Warranty
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Installation & User Guide
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Inverter Compatibility Declaration
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Material Safety Data Sheet
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU

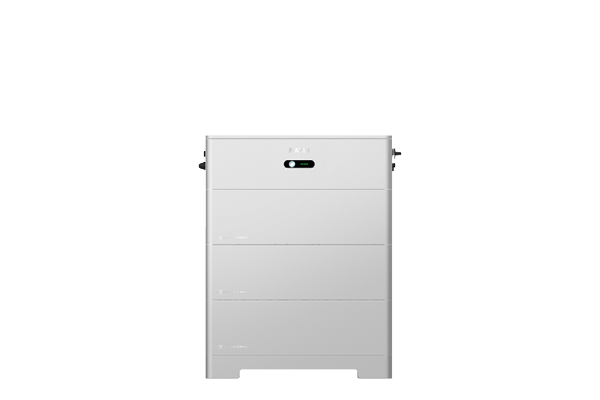

Nahui Battery, High Voltage ESS, 15kWh
NHS-1Y15K
Capacity
Total capacity: 15 KWH
Features
Cell type: LiFePO4 Pouch Cell , High Voltage ESS
Discharging temperature: -20°C to +50°C
Display: App
Finish: Silver
Protection rating: IP65
Power requirements
Max. discharge current: 25A
Max. input current: 40A
Nominal voltage: 307.2V
Operating voltage range: 273.6-345.6V
Rated output power: 15.36 KWH
Usable energy (90% DOD): 14.592kWh
Product dimensions
Depth: 330mm
Height: 816mm
Product weight: 165kg
Single battery module weight: 48kg
Width: 636mm
Capacity
Total capacity: 15 KWH
Features
Cell type: LiFePO4 Pouch Cell , High Voltage ESS
Discharging temperature: -20°C to +50°C
Display: App
Finish: Silver
Protection rating: IP65
Power requirements
Max. discharge current: 25A
Max. input current: 40A
Nominal voltage: 307.2V
Operating voltage range: 273.6-345.6V
Rated output power: 15.36 KWH
Usable energy (90% DOD): 14.592kWh
Product dimensions
Depth: 330mm
Height: 816mm
Product weight: 165kg
Single battery module weight: 48kg
Width: 636mm
Warranty
Product warranty: 10 years
Download resources
General
-
Product Brochure
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Data Sheet
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Service & Warranty
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Installation & User Guide
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Inverter Compatibility Declaration
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
-
Material Safety Data Sheet
High Voltage ESS, 10-40kWh, GeneralFiles-HaierHVACAU
Nahui Battery, High Voltage ESS, 20kWh
NHS-1Y20K
Capacity
Total capacity: 20 KWH
Features
Cell type: LiFePO4 Pouch Cell , High Voltage ESS
Discharging temperature: -20°C to +50°C
Display: App
Finish: Silver
Protection rating: IP65
Power requirements
Max. discharge current: 40A
Max. input current: 25A
Nominal voltage: 409.6V
Operating voltage range: 364.8-460.8V
Rated output power: 20.48 KWH
Usable energy (90% DOD): 19.456kWh
Product dimensions
Depth: 330mm
Height: 1004mm
Product weight: 213kg
Single battery module weight: 48kg
Width: 636mm
Capacity
Total capacity: 20 KWH
Features
Cell type: LiFePO4 Pouch Cell , High Voltage ESS
Discharging temperature: -20°C to +50°C
Display: App
Finish: Silver
Protection rating: IP65
Power requirements
Max. discharge current: 40A
Max. input current: 25A
Nominal voltage: 409.6V
Operating voltage range: 364.8-460.8V
Rated output power: 20.48 KWH
Usable energy (90% DOD): 19.456kWh
Product dimensions
Depth: 330mm
Height: 1004mm
Product weight: 213kg
Single battery module weight: 48kg
Width: 636mm
Warranty
Product warranty: 10 years
