Specifications

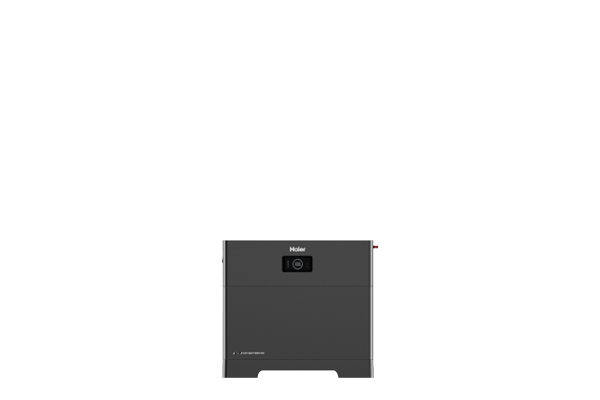

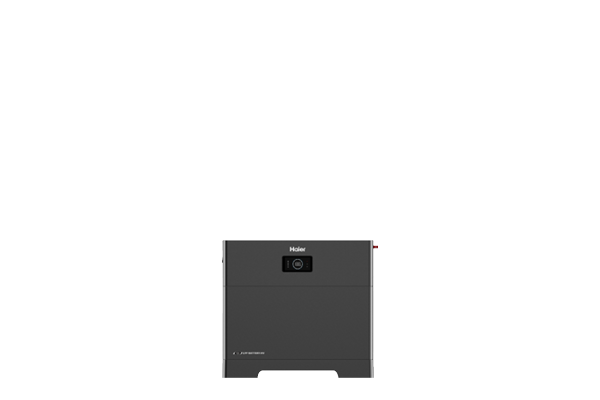

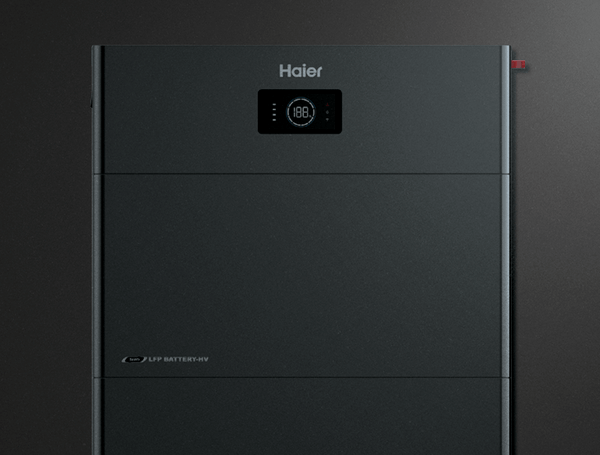

Haier Battery, High Voltage ESS, 5kWh
HHS-1X5K
Capacity
Total capacity: 5 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 6.5A
Max. input current: 6A
Nominal voltage: 400V
Operating voltage range: 350-400V
Rated output power: 5 KWH
Usable energy (90% DOD): 4kWh
Product dimensions
Depth: 189mm
Height: 597mm
Product weight: 67kg
Single battery module weight: 52kg
Width: 653mm
Capacity
Total capacity: 5 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 6.5A
Max. input current: 6A
Nominal voltage: 400V
Operating voltage range: 350-400V
Rated output power: 5 KWH
Usable energy (90% DOD): 4kWh
Product dimensions
Depth: 189mm
Height: 597mm
Product weight: 67kg
Single battery module weight: 52kg
Width: 653mm
Warranty
Product warranty: 10 years
Download resources
General
-
Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Installation & User Guide
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Product Brochure
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Service & Warranty
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Safety Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Declaration of Inverter Compatibility
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU

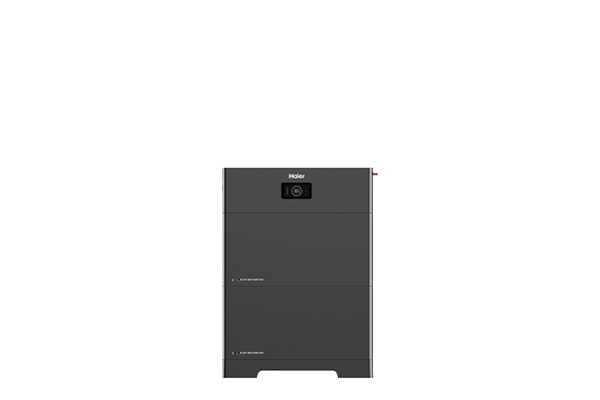

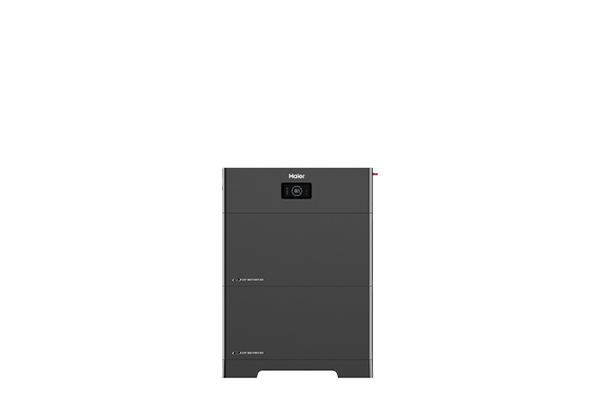

Haier Battery, High Voltage ESS, 10kWh
HHS-1X10K
Capacity
Total capacity: 10 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 13A
Max. input current: 12A
Nominal voltage: 400V
Operating voltage range: 350-400V
Rated output power: 10 KWH
Usable energy (90% DOD): 9kWh
Product dimensions
Depth: 189mm
Height: 912mm
Product weight: 119kg
Single battery module weight: 52kg
Width: 653mm
Capacity
Total capacity: 10 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 13A
Max. input current: 12A
Nominal voltage: 400V
Operating voltage range: 350-400V
Rated output power: 10 KWH
Usable energy (90% DOD): 9kWh
Product dimensions
Depth: 189mm
Height: 912mm
Product weight: 119kg
Single battery module weight: 52kg
Width: 653mm
Warranty
Product warranty: 10 years
Download resources
General
-
Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Installation & User Guide
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Product Brochure
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Service & Warranty
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Safety Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Declaration of Inverter Compatibility
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU

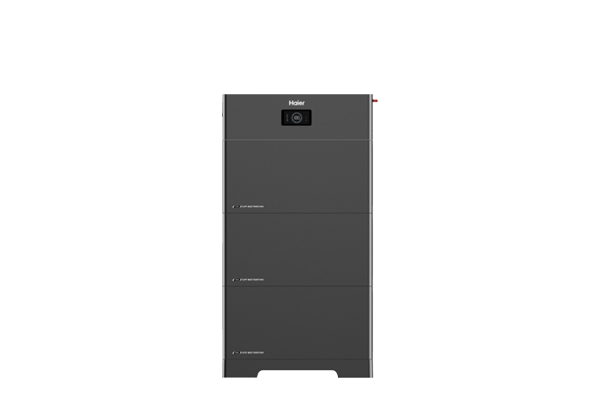

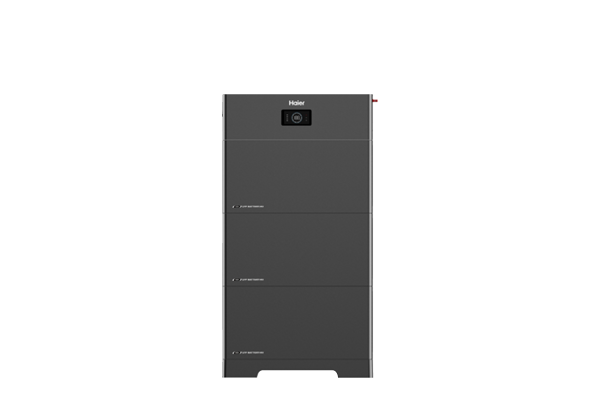

Haier Battery, High Voltage ESS, 15kWh
HHS-1X15K
Capacity
Total capacity: 15 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 19.5A
Max. input current: 18A
Nominal voltage: 400V
Operating voltage range: 350-440V
Rated output power: 15 KWH
Usable energy (90% DOD): 13.5kWh
Product dimensions
Depth: 189mm
Height: 1227mm
Product weight: 171kg
Single battery module weight: 52kg
Width: 653mm
Capacity
Total capacity: 15 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 19.5A
Max. input current: 18A
Nominal voltage: 400V
Operating voltage range: 350-440V
Rated output power: 15 KWH
Usable energy (90% DOD): 13.5kWh
Product dimensions
Depth: 189mm
Height: 1227mm
Product weight: 171kg
Single battery module weight: 52kg
Width: 653mm
Warranty
Product warranty: 10 years
Download resources
General
-
Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Installation & User Guide
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Product Brochure
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Service & Warranty
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Safety Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Declaration of Inverter Compatibility
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU

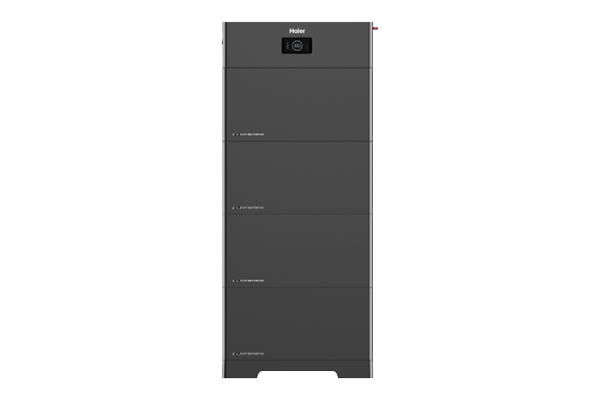

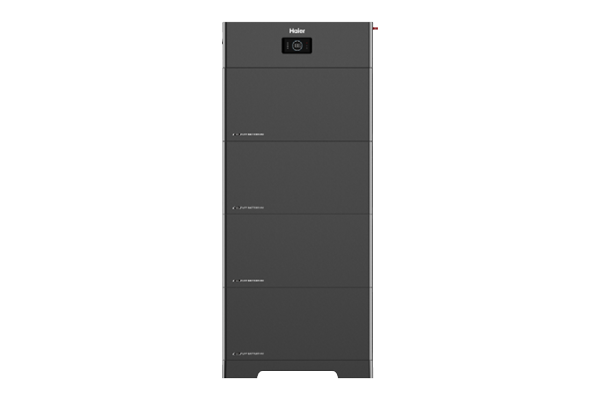

Haier Battery, High Voltage ESS, 20kWh
HHS-1X20K
Capacity
Total capacity: 20 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 26A
Max. input current: 24A
Nominal voltage: 400V
Operating voltage range: 350-440V
Rated output power: 20 KWH
Usable energy (90% DOD): 18kWh
Product dimensions
Depth: 189mm
Height: 1542mm
Product weight: 223kg
Single battery module weight: 52kg
Width: 653mm
Capacity
Total capacity: 20 KWH
Features
Cell type: LiFePO4 Prismatic Cell, High Voltage ESS
Discharging temperature: -20°C to +50°C
Finish: Dark grey
Protection rating: IP65
Power requirements
Max. discharge current: 26A
Max. input current: 24A
Nominal voltage: 400V
Operating voltage range: 350-440V
Rated output power: 20 KWH
Usable energy (90% DOD): 18kWh
Product dimensions
Depth: 189mm
Height: 1542mm
Product weight: 223kg
Single battery module weight: 52kg
Width: 653mm
Warranty
Product warranty: 10 years
Download resources
General
-
Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Installation & User Guide
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Product Brochure
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Service & Warranty
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Safety Data Sheet
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
-
Declaration of Inverter Compatibility
High Voltage ESS, 5-20kWh, GeneralFiles-HaierHVACAU
