Product Set
Outdoor Unit

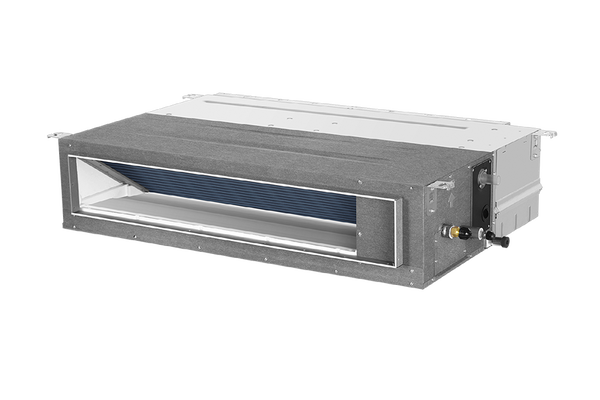

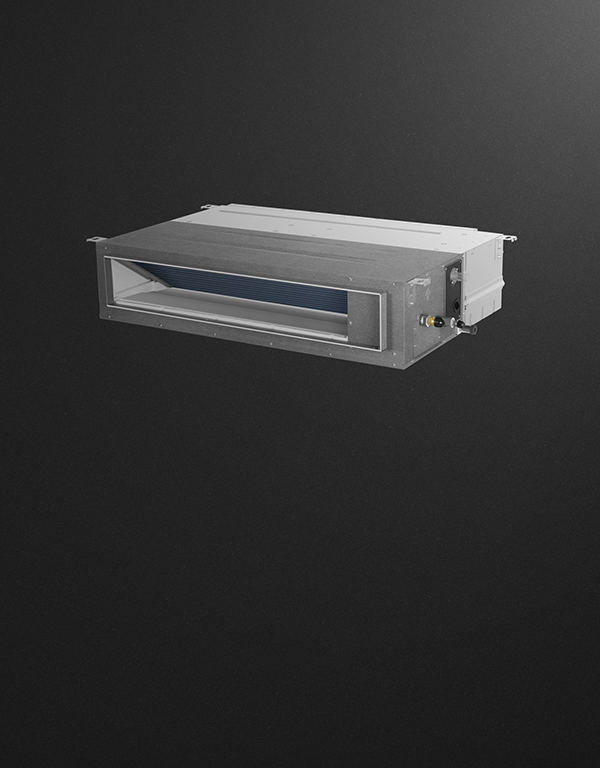

Indoor Unit
Controller
Features
COMFORT IN ALL CONDITIONS
Control the humidity level inside using the Dry function. By removing excess moisture in the air, you can create a comfortable and healthy environment.
CONTROL FROM ANYWHERE
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.
EFFICIENT AND EFFECTIVE
The DC fan motor is more energy efficient than a standard AC motor and it is also highly adjustable. This means you can adjust the static pressure and airflow for optimal performance to suit your layout.
FLEXIBLE INSTALLATION
The low-profile ducted air conditioning design of this unit is ideal for installation in shallow ceiling cavities, such as between floors in multistorey buildings. The panel system also allows for easy conversion between rear or bottom return air installation.
Technologies
Smart Power
Haier’s Smart Power ducted air conditioning systems provide an effective whole-of-home heating and cooling solution. The system is made up of: an outdoor unit in a suitable location, indoor unit often located in the ceiling, flexible ductwork to deliver airflow to multiple rooms through discreet vents and controller for the whole air conditioning system.
Smart Zone control
For control over the airflow to individual rooms, Haier offers an optional SmartZone controller. With up to eight controllable zones, SmartZone lets you turn the airflow on or off to rooms depending on how they are used, minimising unnecessary heating or cooling.
Corrosion protection
The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.
R32 lower-impact refrigerant
Our air conditioning systems use a next-generation R32 refrigerant, which efficiently carries heat and has 33% the global warming potential of R410A.
Specifications
Low Profile Ducted R32, 7.1kW
AD71SMS5FA-SET
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 7.8kW
Consumption
COP: 3.55
EER: 3.38
HSPF-RES (Hot/Average/Cold): 3.590 / 3.403 / 3.111
HSPFCOM (Hot/Average/Cold): 3.576 / 3.453 / 3.216
TCSPF-COM (Hot/Average/Cold): 4.209 / 4.151 / 4.359
TCSPF-RES (Hot/Average/Cold): 3.964 / 3.609 / 3.631
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1100mm
Outdoor unit depth : 372mm
Outdoor unit height : 760mm
Outdoor unit width: 920mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 7.1kW
Heating capacity (kW): 7.8kW
Consumption
COP: 3.55
EER: 3.38
HSPF-RES (Hot/Average/Cold): 3.590 / 3.403 / 3.111
HSPFCOM (Hot/Average/Cold): 3.576 / 3.453 / 3.216
TCSPF-COM (Hot/Average/Cold): 4.209 / 4.151 / 4.359
TCSPF-RES (Hot/Average/Cold): 3.964 / 3.609 / 3.631
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Condensate pump:
Dry mode:
MEPS approved:
Refrigerant factory charge: 1.7kg
Self diagnostics:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AD71S2SM7FA
Indoor unit weight: 38kg
Outdoor unit model: 1U71S2SS5FA
Outdoor unit weight: 60kg
Pipe length maximum: 50m
Pipe size gas: Pipe size 15.88mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 402L/S
DC inverter:
Indoor sound pressure SPL: 42 / 38 / 35dBA
Outdoor sound power SWL: 64dBA
Outdoor sound pressure SPL: 47dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1100mm
Outdoor unit depth : 372mm
Outdoor unit height : 760mm
Outdoor unit width: 920mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Installation & User Guide - Duct Type Air Conditioner
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E17A Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - Smartzone Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Product Brochure
Low Profile Ducted, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide - Split System Air Conditioner
Low Profile Ducted, InstallationManuals-HaierHVACAU
Low Profile Ducted R32, 10kW
AD100MN5FA-SET
Capacity
Cooling capacity (kW): 10kW
Heating capacity (kW): 10.8kW
Consumption
COP: 3.44
EER: 3.15
HSPF-RES (Hot/Average/Cold): 3.690 / 3.397 / 3.019
HSPFCOM (Hot/Average/Cold): 3.681 / 3.496 / 3.191
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.0/1.5/1.5
TCSPF-COM (Hot/Average/Cold): 4.350 / 4.383 / 4.652
TCSPF-RES (Hot/Average/Cold): 4.074 / 3.767 / 3.864
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1500mm
Outdoor unit depth : 370mm
Outdoor unit height : 965mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 10kW
Heating capacity (kW): 10.8kW
Consumption
COP: 3.44
EER: 3.15
HSPF-RES (Hot/Average/Cold): 3.690 / 3.397 / 3.019
HSPFCOM (Hot/Average/Cold): 3.681 / 3.496 / 3.191
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.0/1.5/1.5
TCSPF-COM (Hot/Average/Cold): 4.350 / 4.383 / 4.652
TCSPF-RES (Hot/Average/Cold): 4.074 / 3.767 / 3.864
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Condensate pump:
Dry mode:
MEPS approved:
Refrigerant factory charge: 2.3kg
Self diagnostics:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AD100S2SM7FA
Indoor unit weight: 52kg
Outdoor unit model: 1U100S2SN5FA
Outdoor unit weight: 82kg
Pipe length maximum: 50m
Pipe size gas: Pipe size 15.88mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 555L/S
DC inverter:
Indoor sound pressure SPL: 44 / 40 / 37dBA
Outdoor sound power SWL: 68dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1500mm
Outdoor unit depth : 370mm
Outdoor unit height : 965mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Installation & User Guide - Duct Type Air Conditioner
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E17A Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - Smartzone Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Product Brochure
Low Profile Ducted, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide - Split System Air Conditioner
Low Profile Ducted, InstallationManuals-HaierHVACAU
Low Profile Ducted R32, 12kW
AD125MP5FA-SET
Capacity
Cooling capacity (kW): 12kW
Heating capacity (kW): 14kW
Consumption
COP: 3.49
EER: 3.18
HSPF-RES (Hot/Average/Cold): 3.594 / 3.306 / 2.938
HSPFCOM (Hot/Average/Cold): 3.581 / 3.407 / 3.018
TCSPF-COM (Hot/Average/Cold): 4.190 / 4.201 / 4.445
TCSPF-RES (Hot/Average/Cold): 3.947 / 3.678 / 3.760
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1500mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 12kW
Heating capacity (kW): 14kW
Consumption
COP: 3.49
EER: 3.18
HSPF-RES (Hot/Average/Cold): 3.594 / 3.306 / 2.938
HSPFCOM (Hot/Average/Cold): 3.581 / 3.407 / 3.018
TCSPF-COM (Hot/Average/Cold): 4.190 / 4.201 / 4.445
TCSPF-RES (Hot/Average/Cold): 3.947 / 3.678 / 3.760
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Condensate pump:
Dry mode:
MEPS approved:
Refrigerant factory charge: 2.9kg
Self diagnostics:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AD125S2SM7FA
Indoor unit weight: 52kg
Outdoor unit model: 1U125S2SP5FA
Outdoor unit weight: 105kg
Pipe length maximum: 75m
Pipe size gas: Pipe size 15.88mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 625L/S
DC inverter:
Indoor sound pressure SPL: 45 / 42 / 37dBA
Outdoor sound power SWL: 69dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1500mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Installation & User Guide - Duct Type Air Conditioner
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E17A Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - Smartzone Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Product Brochure
Low Profile Ducted, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide - Split System Air Conditioner
Low Profile Ducted, InstallationManuals-HaierHVACAU
Low Profile Ducted R32, 13kW
AD140MP5FA-SET
Capacity
Cooling capacity (kW): 13kW
Heating capacity (kW): 15kW
Consumption
COP: 3.5
EER: 3.16
HSPF-RES (Hot/Average/Cold): 3.646 / 3.351 / 2.978
HSPFCOM (Hot/Average/Cold): 3.634 / 3.455 / 3.060
TCSPF-COM (Hot/Average/Cold): 4.410 / 4.465 / 4.749
TCSPF-RES (Hot/Average/Cold): 4.134 / 3.858 / 3.977
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1500mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller: Optional
SmartHQ WiFi control: Optional
Standard controller: Optional
Capacity
Cooling capacity (kW): 13kW
Heating capacity (kW): 15kW
Consumption
COP: 3.5
EER: 3.16
HSPF-RES (Hot/Average/Cold): 3.646 / 3.351 / 2.978
HSPFCOM (Hot/Average/Cold): 3.634 / 3.455 / 3.060
TCSPF-COM (Hot/Average/Cold): 4.410 / 4.465 / 4.749
TCSPF-RES (Hot/Average/Cold): 4.134 / 3.858 / 3.977
Features
24 Hour timer:
Auto restart:
Blue fin coils:
Condensate pump:
Dry mode:
MEPS approved:
Refrigerant factory charge: 2.9kg
Self diagnostics:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AD140S2SM7FA
Indoor unit weight: 52kg
Outdoor unit model: 1U140S2SP5FA
Outdoor unit weight: 105kg
Pipe length maximum: 75m
Pipe size gas: Pipe size 19.05mm
Pipe size liquid: Pipe size 9.52mm
Performance
Airflow: 694L/S
DC inverter:
Indoor sound pressure SPL: 46 / 43 / 38dBA
Outdoor sound power SWL: 70dBA
Outdoor sound pressure SPL: 53dBA
R32 Refrigerant:
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 700mm
Indoor unit height: 248mm
Indoor unit width: 1500mm
Outdoor unit depth : 370mm
Outdoor unit height : 1350mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Installation & User Guide - Duct Type Air Conditioner
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E17A Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - Smartzone Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
User Guide - YR-E16B Wired Controller
Low Profile Ducted, GeneralFiles-HaierHVACAU
-
Product Brochure
Low Profile Ducted, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide - Split System Air Conditioner
Low Profile Ducted, InstallationManuals-HaierHVACAU
