Product Set
Outdoor Unit

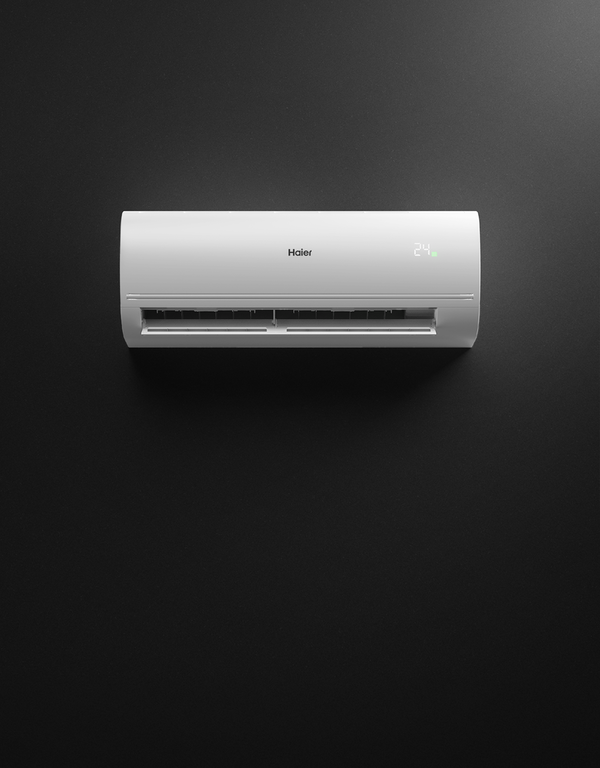

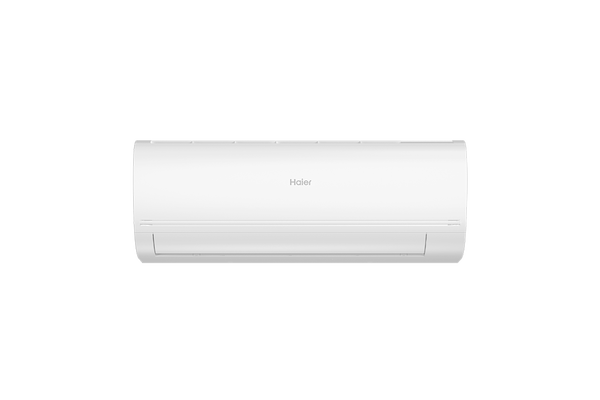

Indoor Unit
Controller
Features
Control From Anywhere
Arrive home to comfort by remotely controlling your air conditioner from anywhere.
Turbo Cooling
The Turbo program boosts the fan to work at a higher speed, cooling your room in a shorter time.
Far-reaching
With innovative fan and motor technology, air from your system reaches long distances – as far as 20 metres in the 7kW model.
Cleaner Indoor Air
The Self-clean function rapidly freezes and defrosts the coil to remove unwanted dirt, mould, and dust. Self-clean technology helps ensure clean airflow from your air conditioner.
Technologies
Intuitive Airflow
Highly engineered airflow to automatically direct warm or cool air for ideal air circulation, air throw of up to 20m and Turbo Cool for fast cooling relief.
Continuously Clean Air
With a push of a button, your air conditioner initiates Self-Clean, reducing dust and bacteria in the air you breathe, and also improves power consumption efficiency by keeping the heat exchanger clean.
WiFi
With Haier and Fisher & Paykel appliances able to be connected to the SmartHQ™ app, you can check in and manage all your other connected appliances, as well as control your air conditioning.
Specifications
Tempo Hi Wall, 2.5kW
AS25TBMHRA-SET
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3kW
Consumption
COP: 3.90
EER: 3.90
HSPF-RES (Hot/Average/Cold): 4.444 / 4.034 / 3.632
HSPFCOM (Hot/Average/Cold): 4.445 / 4.196 / 3.849
Star-Cool (Hot/Average/Cold): 3.0 / 3.0 / 3.0
Star-Heat (Hot/Average/Cold): 2.5 / 2.5 / 2.0
TCSPF-COM (Hot/Average/Cold): 5.211 / 5.274 / 5.611
TCSPF-RES (Hot/Average/Cold): 4.883 / 4.589 / 4.689
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 8.5kg
Outdoor unit depth : 245mm
Outdoor unit height : 544mm
Outdoor unit width: 700mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 2.5kW
Heating capacity (kW): 3kW
Consumption
COP: 3.90
EER: 3.90
HSPF-RES (Hot/Average/Cold): 4.444 / 4.034 / 3.632
HSPFCOM (Hot/Average/Cold): 4.445 / 4.196 / 3.849
Star-Cool (Hot/Average/Cold): 3.0 / 3.0 / 3.0
Star-Heat (Hot/Average/Cold): 2.5 / 2.5 / 2.0
TCSPF-COM (Hot/Average/Cold): 5.211 / 5.274 / 5.611
TCSPF-RES (Hot/Average/Cold): 4.883 / 4.589 / 4.689
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Built-in Wi-Fi smart control:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Power mode:
Refrigerant factory charge: 0.58kg
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AS25TBMHRA
Indoor unit weight: 8.5kg
Outdoor unit model: 1U25YAMFRA
Outdoor unit weight: 24kg
Pipe length maximum: 15m
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 181
DC inverter:
Indoor sound pressure SPL: 39 / 35 / 32 / 29dBA
Outdoor sound power SWL: 59dBA
Outdoor sound pressure SPL: 51dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 56dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 5.6A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 8.5kg
Outdoor unit depth : 245mm
Outdoor unit height : 544mm
Outdoor unit width: 700mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Service & Warranty Booklet
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Tempo (Heating and Cooling), InstallationManuals-HaierHVACAU
Tempo Hi Wall, 3.5kW
AS35TBMHRA-SET
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Consumption
COP: 3.70
EER: 3.68
HSPF-RES (Hot/Average/Cold): 4.358 / 3.949 / 3.522
HSPFCOM (Hot/Average/Cold): 4.358 / 4.109 / 3.745
Star-Cool (Hot/Average/Cold): 3.0 / 3.0 / 3.0
Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 2.0
TCSPF-COM (Hot/Average/Cold): 5.254 / 5.337 / 5.687
TCSPF-RES (Hot/Average/Cold): 4.925 / 4.615 / 4.775
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 9kg
Outdoor unit depth : 280mm
Outdoor unit height : 550mm
Outdoor unit width: 800mm
Warranty
Parts and labour: 5 years
Accessories (included)
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 3.5kW
Heating capacity (kW): 3.7kW
Consumption
COP: 3.70
EER: 3.68
HSPF-RES (Hot/Average/Cold): 4.358 / 3.949 / 3.522
HSPFCOM (Hot/Average/Cold): 4.358 / 4.109 / 3.745
Star-Cool (Hot/Average/Cold): 3.0 / 3.0 / 3.0
Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 2.0
TCSPF-COM (Hot/Average/Cold): 5.254 / 5.337 / 5.687
TCSPF-RES (Hot/Average/Cold): 4.925 / 4.615 / 4.775
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Built-in Wi-Fi smart control:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Power mode:
Refrigerant factory charge: 0.73kg
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AS35TBMHRA
Indoor unit weight: 9kg
Outdoor unit model: 1U35MAMFRA
Outdoor unit weight: 28kg
Pipe length maximum: 15m
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 208
DC inverter:
Indoor sound pressure SPL: 40 / 36 / 32 / 30dBA
Outdoor sound power SWL: 60dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 57dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 7A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 9kg
Outdoor unit depth : 280mm
Outdoor unit height : 550mm
Outdoor unit width: 800mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Service & Warranty Booklet
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Tempo (Heating and Cooling), InstallationManuals-HaierHVACAU
Tempo Hi Wall, 5.0kW
AS50TCMHRA-SET
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.2kW
Consumption
COP: 3.30
EER: 3.30
HSPF-RES (Hot/Average/Cold): 3.858 / 3.547 / 3.237
HSPFCOM (Hot/Average/Cold): 3.855 / 3.665 / 3.400
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
Star-Heat (Hot/Average/Cold): 2.0 / 2.0 / 1.5
TCSPF-COM (Hot/Average/Cold): 4.689 / 4.719 / 5.001
TCSPF-RES (Hot/Average/Cold): 4.431 / 4.186 / 4.299
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 309mm
Indoor unit width: 875mm
Net weight: 10kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Accessories (included)
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 5kW
Heating capacity (kW): 5.2kW
Consumption
COP: 3.30
EER: 3.30
HSPF-RES (Hot/Average/Cold): 3.858 / 3.547 / 3.237
HSPFCOM (Hot/Average/Cold): 3.855 / 3.665 / 3.400
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
Star-Heat (Hot/Average/Cold): 2.0 / 2.0 / 1.5
TCSPF-COM (Hot/Average/Cold): 4.689 / 4.719 / 5.001
TCSPF-RES (Hot/Average/Cold): 4.431 / 4.186 / 4.299
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Built-in Wi-Fi smart control:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Power mode:
Refrigerant factory charge: 1.1kg
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AS50TCMHRA
Indoor unit weight: 10kg
Outdoor unit model: 1U50KAMFRA
Outdoor unit weight: 36.5kg
Pipe length maximum: 15m
Pipe size gas: 12.70mm
Pipe size liquid: 6.35mm
Performance
Airflow: 250
DC inverter:
Indoor sound pressure SPL: 45 / 41 / 37 / 31dBA
Outdoor sound power SWL: 65dBA
Outdoor sound pressure SPL: 53dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 60dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 9.5A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 309mm
Indoor unit width: 875mm
Net weight: 10kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Service & Warranty Booklet
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Tempo (Heating and Cooling), InstallationManuals-HaierHVACAU
Tempo Hi Wall, 7.1kW
AS71TEMHRA-SET
Capacity
Cooling capacity (kW): 7kW
Heating capacity (kW): 7.5kW
Consumption
COP: 3.30
EER: 3.30
HSPF-RES (Hot/Average/Cold): 4.774 / 4.237 / 3.693
HSPFCOM (Hot/Average/Cold): 4.781 / 4.456 / 3.987
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5
TCSPF-COM (Hot/Average/Cold): 4.831 / 4.934 / 5.271
TCSPF-RES (Hot/Average/Cold): 4.530 / 4.280 / 4.449
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1105mm
Net weight: 15.5kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Accessories (included)
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 7kW
Heating capacity (kW): 7.5kW
Consumption
COP: 3.30
EER: 3.30
HSPF-RES (Hot/Average/Cold): 4.774 / 4.237 / 3.693
HSPFCOM (Hot/Average/Cold): 4.781 / 4.456 / 3.987
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5
TCSPF-COM (Hot/Average/Cold): 4.831 / 4.934 / 5.271
TCSPF-RES (Hot/Average/Cold): 4.530 / 4.280 / 4.449
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Built-in Wi-Fi smart control:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Power mode:
Refrigerant factory charge: 1.1kg
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AS71TEMHRA
Indoor unit weight: 15.5kg
Outdoor unit model: 1U71KAMFRA
Outdoor unit weight: 36.5kg
Pipe length maximum: 25m
Pipe size gas: 12.70mm
Pipe size liquid: 6.35mm
Performance
Airflow: 306
DC inverter:
Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA
Outdoor sound power SWL: 66dBA
Outdoor sound pressure SPL: 54dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 63dBA
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
AMP draw: 12.5A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1105mm
Net weight: 15.5kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Service & Warranty Booklet
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Tempo (Heating and Cooling), InstallationManuals-HaierHVACAU
Tempo Hi Wall, 9.0kW
AS90PFDHRA-SET
Capacity
Cooling capacity (kW): 9kW
Heating capacity (kW): 9.5kW
Consumption
COP: 3.57 / 3.54
EER: 3.40 / 3.37
HSPF-RES (Hot/Average/Cold): 4.481 / 3.908 / 3.392
Star-Cool (Hot/Average/Cold): 4.5 / 3.5 / 4.0
Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5
TCSPF-RES (Hot/Average/Cold): 6.078 / 5.394 / 5.746
Product dimensions
Indoor unit depth : 275mm
Indoor unit height: 365mm
Indoor unit width: 1316mm
Outdoor unit depth : 370mm
Outdoor unit height : 815mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 9kW
Heating capacity (kW): 9.5kW
Consumption
COP: 3.57 / 3.54
EER: 3.40 / 3.37
HSPF-RES (Hot/Average/Cold): 4.481 / 3.908 / 3.392
Star-Cool (Hot/Average/Cold): 4.5 / 3.5 / 4.0
Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5
TCSPF-RES (Hot/Average/Cold): 6.078 / 5.394 / 5.746
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Built-in Wi-Fi smart control:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Infrared remote control:
Intelligent air:
Internal and external heat exchanger self-cleaning:
MEPS approved:
Power mode:
Refrigerant factory charge: 1.55kg
Sleep mode:
UV Protect:
Voice control via Google Home or Amazon Alexa:
Wi-Fi controller compatible:
Installation
Indoor unit model: AS90PFDHRA
Indoor unit weight: 21.5kg
Outdoor unit model: 1U90XADFRA
Outdoor unit weight: 51kg
Pipe length maximum: 25m
Pipe size gas: Pipe size 15.88mm
Pipe size liquid: Pipe size 6.35mm
Performance
Airflow: 320/305/290 L/S
DC inverter:
Indoor sound pressure SPL: 48 / 42 / 36 / 30dBA
Outdoor sound power SWL: 69dBA
Outdoor sound pressure SPL: 56dBA
R32 Refrigerant:
Self cleaning evaporator:
Working temperature cooling: -10°C to +46°C
Working temperature heating: -15°C to +24°C
Power requirements
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 230V
Product dimensions
Indoor unit depth : 275mm
Indoor unit height: 365mm
Indoor unit width: 1316mm
Outdoor unit depth : 370mm
Outdoor unit height : 815mm
Outdoor unit width: 950mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Product Brochure
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
Service & Warranty Booklet
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
-
User Guide
Tempo (Heating and Cooling), GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Tempo (Heating and Cooling), InstallationManuals-HaierHVACAU
Similar Products
