Product Set
Outdoor Unit
Controller

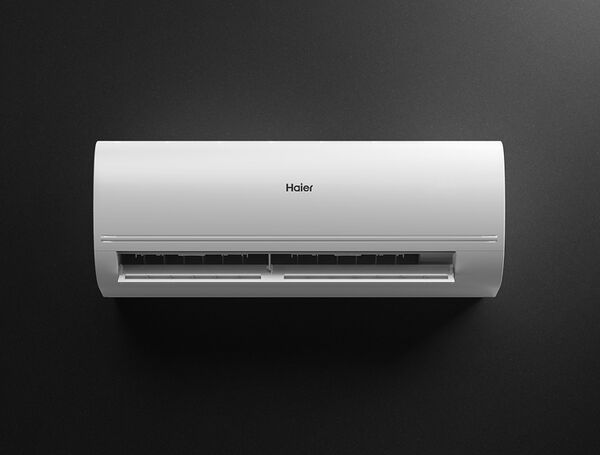

Indoor Unit
Features
Designed for warmer climates
With cooling ability only, this air conditioner is designed for hot climates and is optimised for cooling.
Control from anywhere
Arrive home to comfort by remotely controlling your air conditioner from anywhere.
Turbo cooling
The Turbo program boosts the fan to work at a higher speed, cooling your room in a shorter time.
Far-reaching
With innovative fan and motor technology, air from your system reaches long distances – as far as 20 metres in the 7kW model.
Technologies

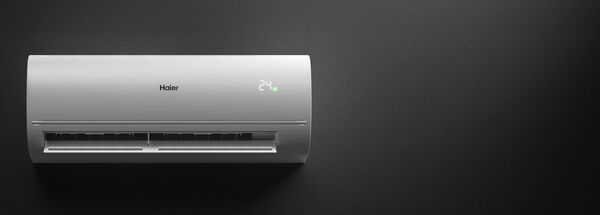

Custom Design
Designed for Australian conditions and critters, this Cooling Only model is optimised for cooling, with a wide ambient temperature operation range up to 46ºC. In the outdoor unit, our Blue Fin coating helps protect against corrosion, and a new gecko-resistant design helps to keep vermin from reaching critical electrical components.
Continuously Clean Air
With a push of a button, your air conditioner initiates Self-Clean, reducing dust and bacteria in the air you breathe, and also improves power consumption efficiency by keeping the heat exchanger clean.
Wi-Fi Connectivity
The SmartHQ™ app puts control in your hands and means you can control your air-conditioning / heat pump from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.
Coanda Plus Airflow
Coanda Plus Airflow technology sends cool air further, as far as 20 metres in the 7kW model. From ceiling to floor and to every corner of the room, air circulates evenly.
Specifications
Cooling Hi Wall, 2.5kW
AS25TBMCRA-SET
Capacity
Cooling capacity (kW): 2.5kW
Consumption
EER: 3.85
Star-Cool (Hot/Average/Cold): 3.5/3.0/3.0
TCSPF-COM (Hot/Average/Cold): 5.408/5.484/5.840
TCSPF-RES (Hot/Average/Cold): 5.067/4.735/4.891
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 8.5kg
Outdoor unit depth : 245mm
Outdoor unit height : 544mm
Outdoor unit width: 700mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 2.5kW
Consumption
EER: 3.85
Star-Cool (Hot/Average/Cold): 3.5/3.0/3.0
TCSPF-COM (Hot/Average/Cold): 5.408/5.484/5.840
TCSPF-RES (Hot/Average/Cold): 5.067/4.735/4.891
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Compressor type: Inverter twin rotary
Concealed LED display:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Infrared remote control:
Intelligent air:
Inverter controlled compressor:
MEPS approved:
Motor type: Inverter
Power mode:
Refrigerant factory charge: 0.58kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS25TBMCRA
Indoor unit weight: 8.2kg
Outdoor unit model: 1U25YAMCRA
Outdoor unit weight: 24kg
Pipe length maximum: 15m
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 181
DC inverter:
Indoor sound pressure SPL: 39/35/32/29dBA
Outdoor sound power SWL: 60dBA
Outdoor sound pressure SPL: 51dBA
R32 Refrigerant:
Self cleaning evaporator:
Working temperature cooling: -10°C to +46°C
Power requirements
AMP draw: 5.6A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 8.5kg
Outdoor unit depth : 245mm
Outdoor unit height : 544mm
Outdoor unit width: 700mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Cooling Only, GeneralFiles-HaierHVACAU
-
User Guide
Cooling Only, GeneralFiles-HaierHVACAU
-
Product Brochure
Cooling Only, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Cooling Only, InstallationManuals-HaierHVACAU

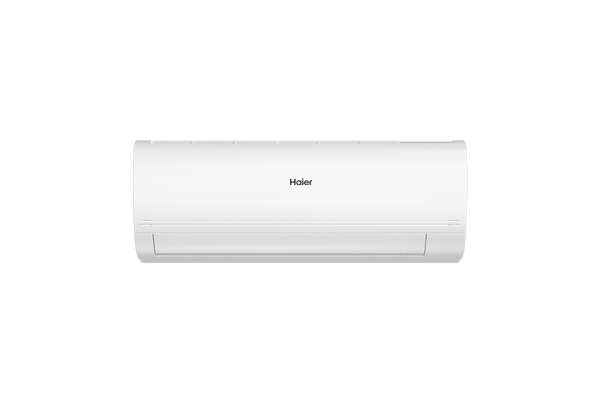

Cooling Hi Wall, 3.5kW
AS35TBMCRA-SET
Capacity
Cooling capacity (kW): 3.5kW
Consumption
EER: 3.72
Star-Cool (Hot/Average/Cold): 3.0 / 3.0 / 3.0
TCSPF-COM (Hot/Average/Cold): 5.345/5.434/5.796
TCSPF-RES (Hot/Average/Cold): 4.996/4.657/4.820
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 9kg
Outdoor unit depth : 280mm
Outdoor unit height : 550mm
Outdoor unit width: 800mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 3.5kW
Consumption
EER: 3.72
Star-Cool (Hot/Average/Cold): 3.0 / 3.0 / 3.0
TCSPF-COM (Hot/Average/Cold): 5.345/5.434/5.796
TCSPF-RES (Hot/Average/Cold): 4.996/4.657/4.820
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Compressor type: Inverter twin rotary
Concealed LED display:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Intelligent air:
Inverter controlled compressor:
MEPS approved:
Motor type: Inverter
Power mode:
Refrigerant factory charge: 0.73kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS35TBMCRA
Indoor unit weight: 9kg
Outdoor unit model: 1U35MAMCRA
Outdoor unit weight: 28kg
Pipe length maximum: 15m
Pipe size gas: 9.52mm
Pipe size liquid: 6.35mm
Performance
Airflow: 208
DC inverter:
Indoor sound pressure SPL: 40 / 36 / 32 / 30dBA
Outdoor sound power SWL: 60dBA
Outdoor sound pressure SPL: 52dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 57dBA
Working temperature cooling: -10°C to +46°C
Power requirements
AMP draw: 7A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 200mm
Indoor unit height: 292mm
Indoor unit width: 805mm
Net weight: 9kg
Outdoor unit depth : 280mm
Outdoor unit height : 550mm
Outdoor unit width: 800mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Cooling Only, GeneralFiles-HaierHVACAU
-
User Guide
Cooling Only, GeneralFiles-HaierHVACAU
-
Product Brochure
Cooling Only, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Cooling Only, InstallationManuals-HaierHVACAU
Cooling Hi Wall, 5.0kW
AS50TDMCRA-SET
Capacity
Cooling capacity (kW): 5kW
Consumption
EER: 3.30
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
TCSPF-COM (Hot/Average/Cold): 4.689 / 4.719 / 5.001
TCSPF-RES (Hot/Average/Cold): 4.431 / 4.186 / 4.299
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 309mm
Indoor unit width: 875mm
Net weight: 10kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 5kW
Consumption
EER: 3.30
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
TCSPF-COM (Hot/Average/Cold): 4.689 / 4.719 / 5.001
TCSPF-RES (Hot/Average/Cold): 4.431 / 4.186 / 4.299
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Compressor type: Inverter twin rotary
Concealed LED display:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Infrared remote control:
Intelligent air:
Inverter controlled compressor:
MEPS approved:
Motor type: Inverter
Power mode:
Refrigerant factory charge: 1.1kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS50TDMCRA
Indoor unit weight: 10kg
Outdoor unit model: 1U50KAMCRA
Outdoor unit weight: 36.5kg
Pipe length maximum: 15m
Pipe size gas: 12.70mm
Pipe size liquid: 6.35mm
Performance
Airflow: 250
DC inverter:
Indoor sound pressure SPL: 45 / 41 / 37 / 31dBA
Outdoor sound power SWL: 65dBA
Outdoor sound pressure SPL: 53dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 60dBA
Working temperature cooling: -10°C to +46°C
Power requirements
AMP draw: 9.5A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 217mm
Indoor unit height: 309mm
Indoor unit width: 875mm
Net weight: 10kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Cooling Only, GeneralFiles-HaierHVACAU
-
User Guide
Cooling Only, GeneralFiles-HaierHVACAU
-
Product Brochure
Cooling Only, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Cooling Only, InstallationManuals-HaierHVACAU
Cooling Hi Wall, 7.0kW
AS71TDMCRA-SET
Capacity
Cooling capacity (kW): 7kW
Consumption
EER: 3.30
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
TCSPF-COM (Hot/Average/Cold): 4.731/4.822/5.147
TCSPF-RES (Hot/Average/Cold): 4.4394.193/4.356
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1105mm
Net weight: 15.5kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Accessories (included)
Central controller: Optional
IR Controller:
SmartHQ WiFi control:
Standard controller: YR-HE
Capacity
Cooling capacity (kW): 7kW
Consumption
EER: 3.30
Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5
TCSPF-COM (Hot/Average/Cold): 4.731/4.822/5.147
TCSPF-RES (Hot/Average/Cold): 4.4394.193/4.356
Features
24 Hour timer:
Anti-bacterial silver ion coating:
Auto restart:
Auto swing-up and down:
Blue fin coils:
Built-in Wi-Fi smart control:
Compressor type: Inverter twin rotary
Concealed LED display:
DRED (Demand Response) ready: Optional HPRT-DRA001
Dry mode:
Infrared remote control:
Intelligent air:
Inverter controlled compressor:
MEPS approved:
Motor type: Inverter
Power mode:
Refrigerant factory charge: 1.1kg
Self diagnostics:
Sleep mode:
Voice control via Google Home or Amazon Alexa:
Installation
Indoor unit model: AS71TDMCRA
Indoor unit weight: 15.5kg
Outdoor unit model: 1U71WADCRA
Outdoor unit weight: 36.5kg
Pipe length maximum: 25m
Pipe size gas: 12.70mm
Pipe size liquid: 6.35mm
Performance
Airflow: 306
DC inverter:
Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA
Outdoor sound power SWL: 66dBA
Outdoor sound pressure SPL: 54dBA
R32 Refrigerant:
Self cleaning evaporator:
Sound power: 63dBA
Working temperature cooling: -10°C to +46°C
Power requirements
AMP draw: 12.5A
Power phase: Single phase
Supply frequency: 50Hz
Supply voltage: 220-240V
Product dimensions
Indoor unit depth : 240mm
Indoor unit height: 345mm
Indoor unit width: 1105mm
Net weight: 15.5kg
Outdoor unit depth : 306mm
Outdoor unit height : 642mm
Outdoor unit width: 816mm
Warranty
Parts and labour: 5 years
Download resources
General
-
Service & Warranty Booklet
Cooling Only, GeneralFiles-HaierHVACAU
-
User Guide
Cooling Only, GeneralFiles-HaierHVACAU
-
Product Brochure
Cooling Only, GeneralFiles-HaierHVACAU
Installation
-
Installation Guide
Cooling Only, InstallationManuals-HaierHVACAU
